AIXAM PROe-TRUCK Drop side

Performance & Pollution

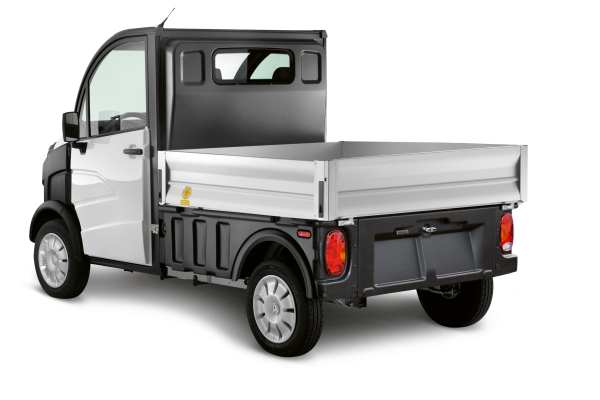

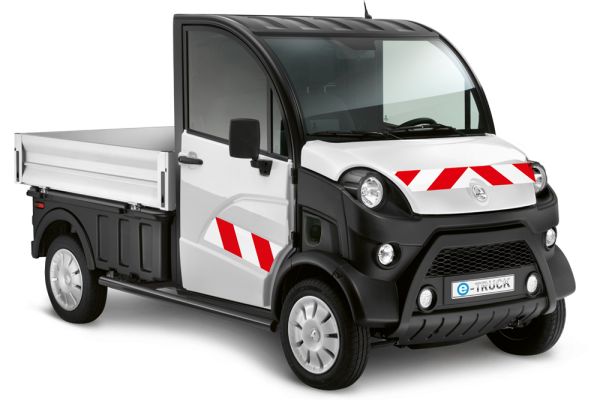

e-TRUCK Drop side

2m 2 loading surface, anti-slip wood curtains, double-wall rigid fold-down and removable side walls, .... for more adaptability, the unlicensed e-truck flatbed has many accessories adaptable to your activity

from 17 299
179
€ 25 / Month
1st payment of 4 325 €
LLD offer **
** Read more
A credit is binding and must be repaid. Verify your repayment capacity before committing yourself.

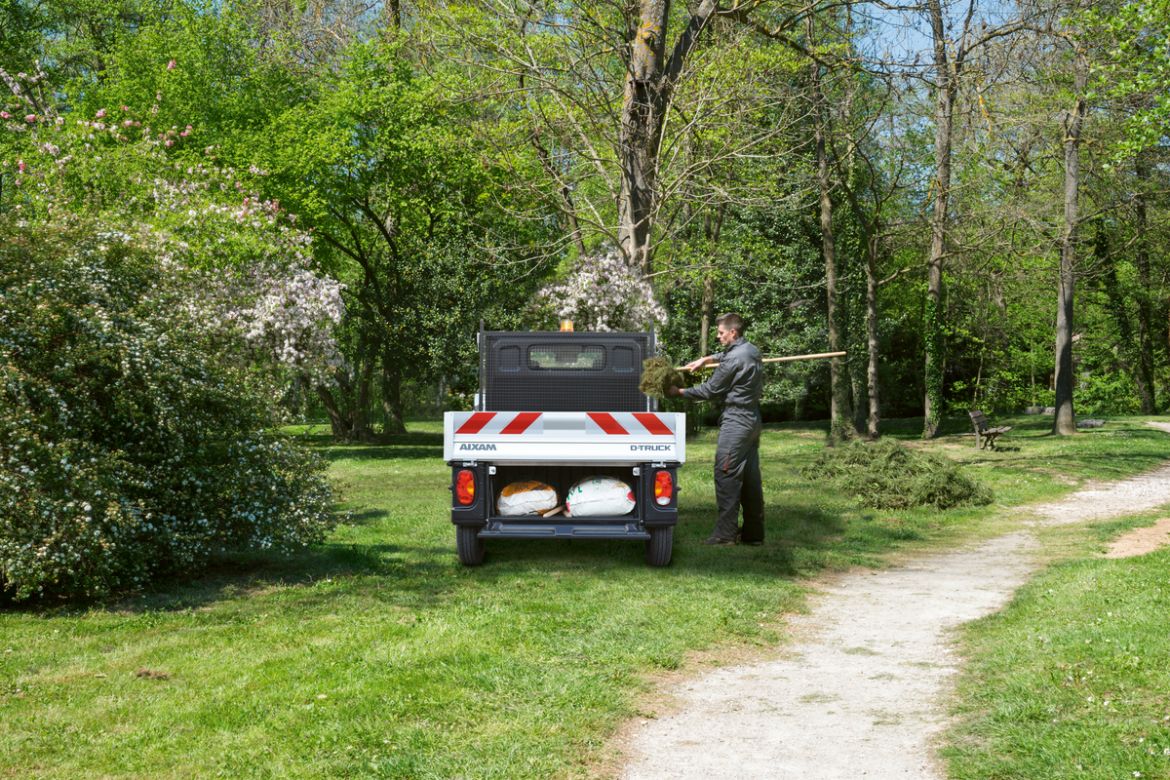

Gallery - e-TRUCK Drop side -

2m2 loading surface

Zero CO2  emission

0 % noise pollution

2-YEAR WARRANTY ON PARTS AND LABOUR, UNLIMITED KILOMETRAGE

AIXAM ASSISTANCE : 2-YEAR ROADSIDE ASSISTANCE PLAN. VEHICLES NEARLY 100% RECYCLABLE.

Vehicles certified under European Directive 168/2013 UE

Engine

EngineElectric
Maximum power kW CE (HP at …. rpm)6
Torque (Nm / rpm)50
FuelElectricity
Batterylithium

Transmission

TransmissionVSD-controlled automatic transmission
Driving wheelsfront
Transmission1 forward reduction + neutral + 1 reverse reduction

Braking

Braking system4-wheel cross-action double-circuit brakes with limiter and automatic compensation for brake-padwear
Front brake disk diameter (mm)220
Rear brake drum diameter (mm)160

Suspension

Type of suspensionHi-gain elastic spring suspension and double-action shock absorbers
Front suspensionTriangular pseudo-MacPherson type independent wheel suspension with coil springs
Rear suspensionindependent wheels, balance rods, coil springs

Tyres

Tyres size145/70R13

Body frame and volumes

BodyABS acrylic body on aluminium frame
Rack-and-pinion steering, turning radius (m)4
Seating2

Overall dimensions (m)

Lenght3000
Width1500
Wheelbase2252
Front track1345
Rear track1284

Weight

Authorised gross weight857

Performance

Maximum speed (kph)45
Range (km)80

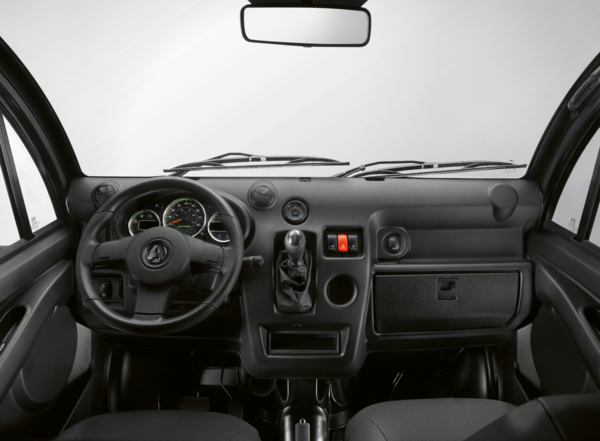

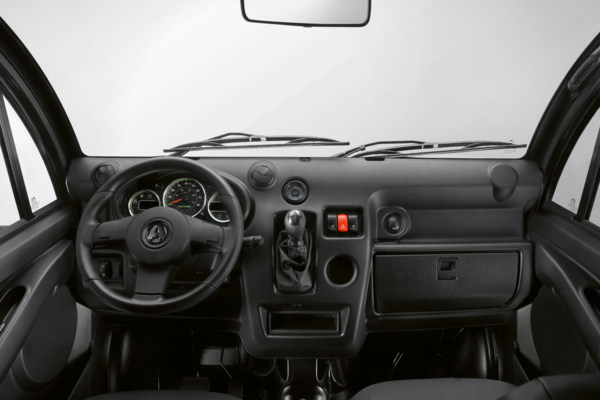

On board instrumentation

Adjustable instrument panel backlighting
Black metre background
Brake pad wear audible indicator
Central multi-purpose on-board computer with large screen
D-N-R Display of gearshift position
Digital clock
Digital total trip and partial trip odometer
Dual digital display
Fuel (or energy) gauge with warning light
Indicator lamps
Right and left turn signals, rear fog lamp, parking lights, emergency flasher, headlights, Neutral gear, traction battery charge
Service due indicator
speedometer and tachometer needles
Warning indicator lamps
General defect,brake fluid level - hand brake

Driveability & safety

2 position day/night rear-view mirror
Automatic activation of hazard lights on sudden braking
Circular air vents (two) mounted on dashboard
Front 3-speed parallelogram wipers (1 intermittent speed)
Front bumper with integrate “bull bars”
Front seat belt reel assembly
Headlights on audible warning
Hi-power, 3-speed heater-defroster-fan
Hi-power, halogen headlights
Ignition locked if in gear
Laminated windscreen
LED running lamps
Rear fog lamps (2)
Reinforced doors
Reversing lights
Steering lock
Ultra-smooth gear-shift
Windscreen wash with automatic wiping

Comfort & finishing

12 V socket
Automobile type external door handles
Centralising locking
Driver and passenger sun visors with card holder
Glass -panelled rear doors
Interior lighting
Metallic colour
Rubber mat on cab floor
Single key for all doors, ignition and fuel tank
Tinted windows

Stowage

2m2 loading surface for the drop-side
620 littres of boot space with lockable door
Anti-slip wooden floor for the loading zone

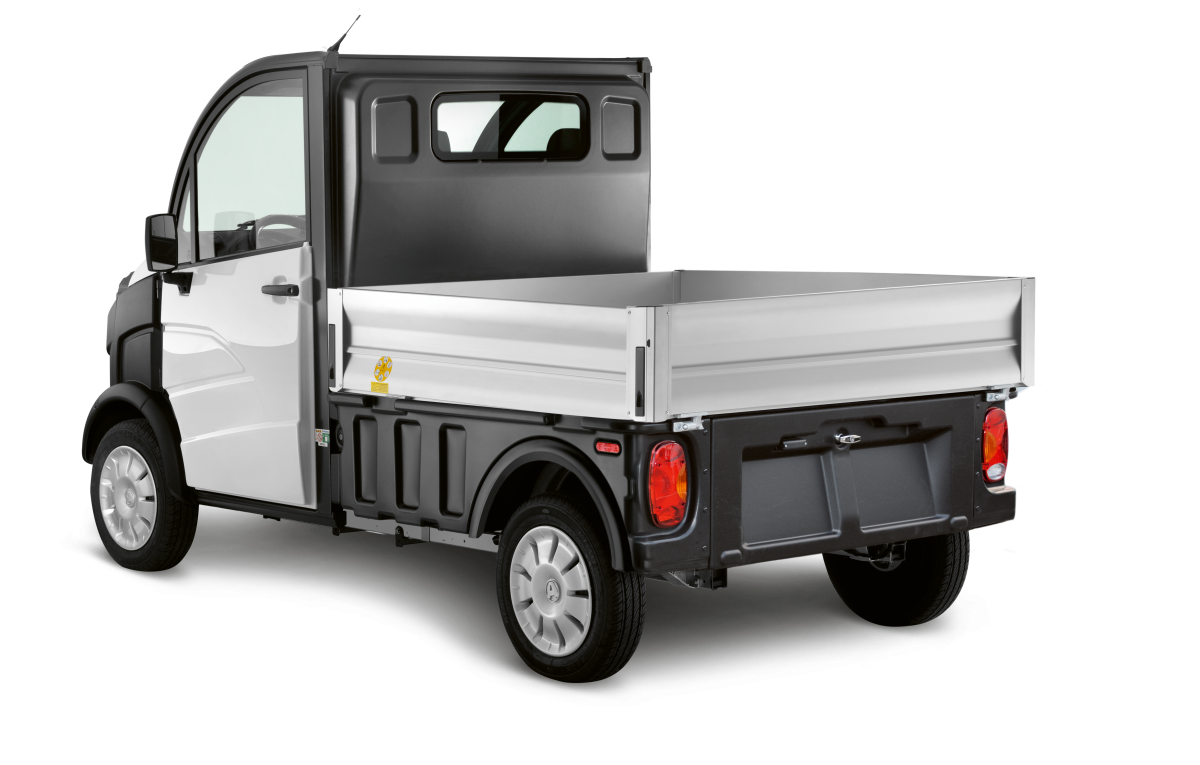

Folding and removeable double wall dropsides
Glove box with cup and change holders
Lashing rings (four) in loading area
Low loading height (van and box under drop side)
Storage compartment between seats + on floor + in both doors

Wheels

145/70R13 Steel wheel rims
Flat-tyre aerosol inflator/repair kit
Hub caps

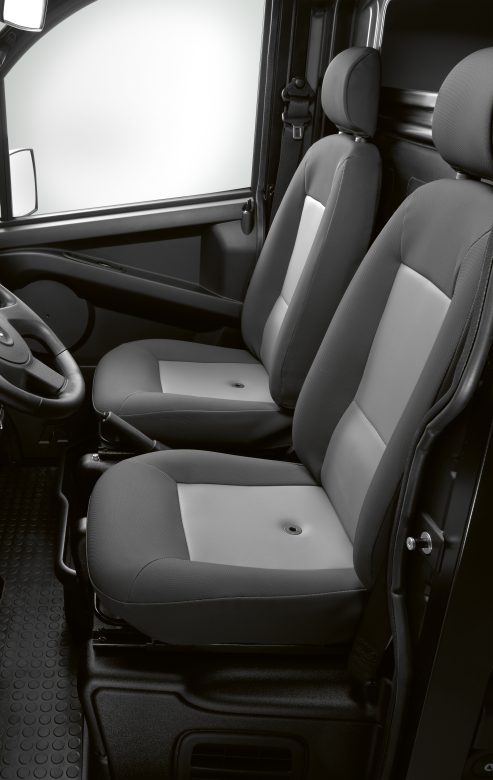

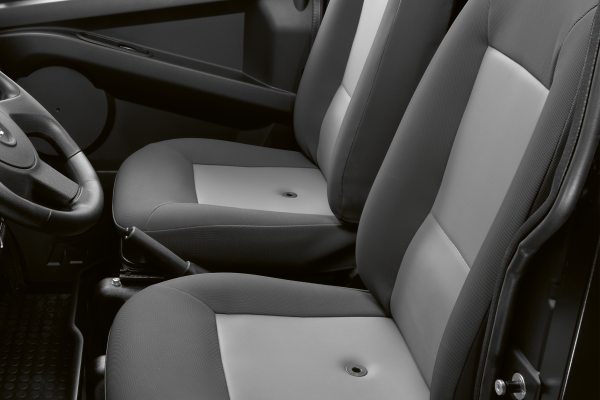

Seats

Balls slides for driver's seat
Headrests

Audio

Factory-installed radio

Driveability & safety

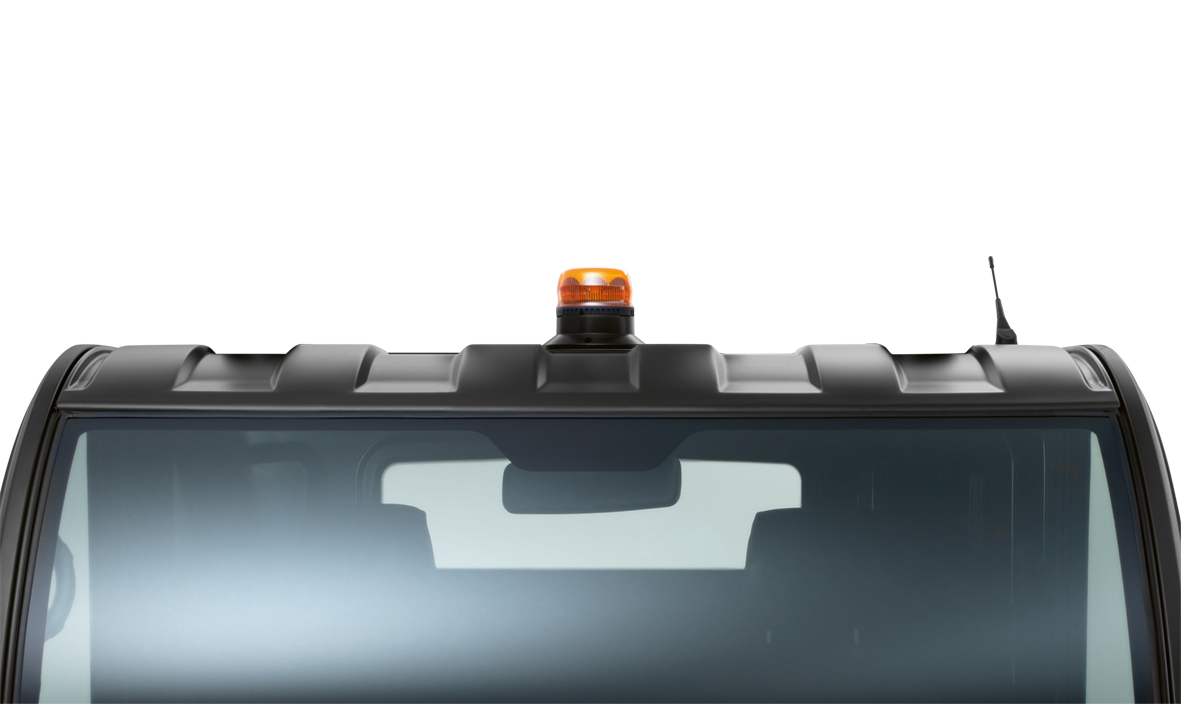

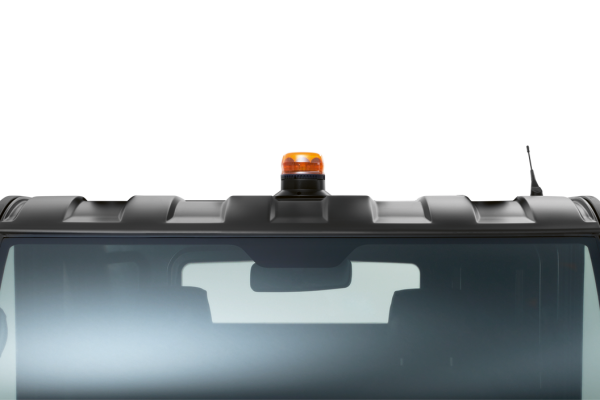

LED flash
Rear protection bars

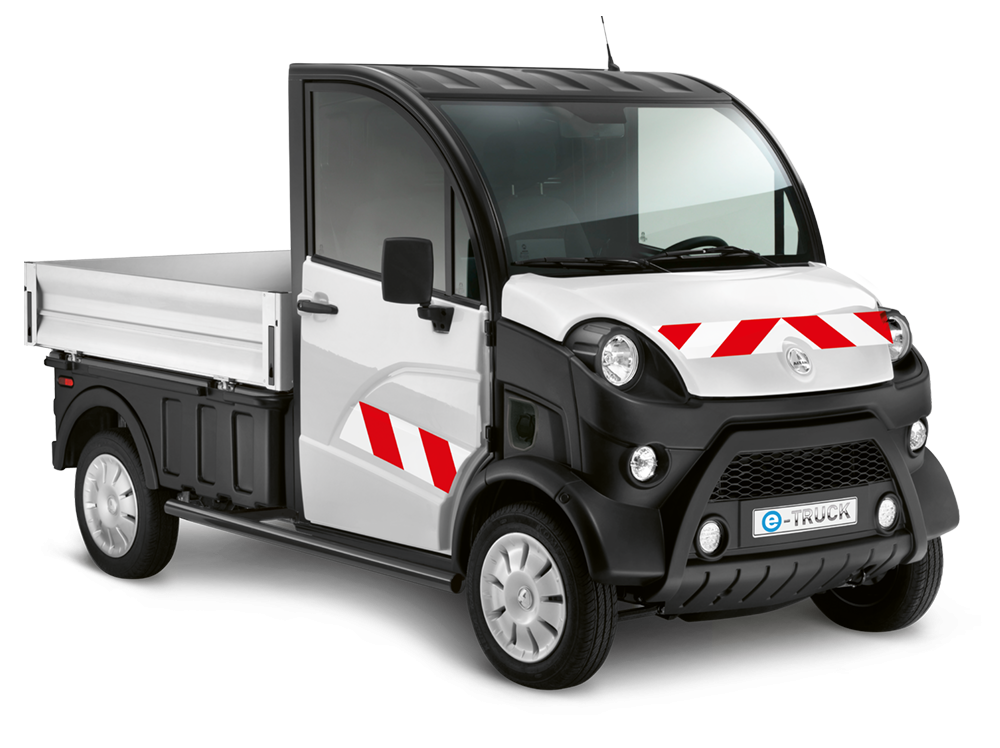

Reflecting tapes class 1
Reflecting tapes class 2
Reverse bipper
Side protection bars

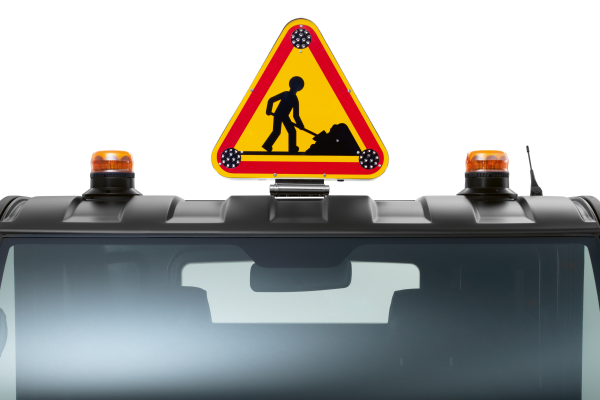

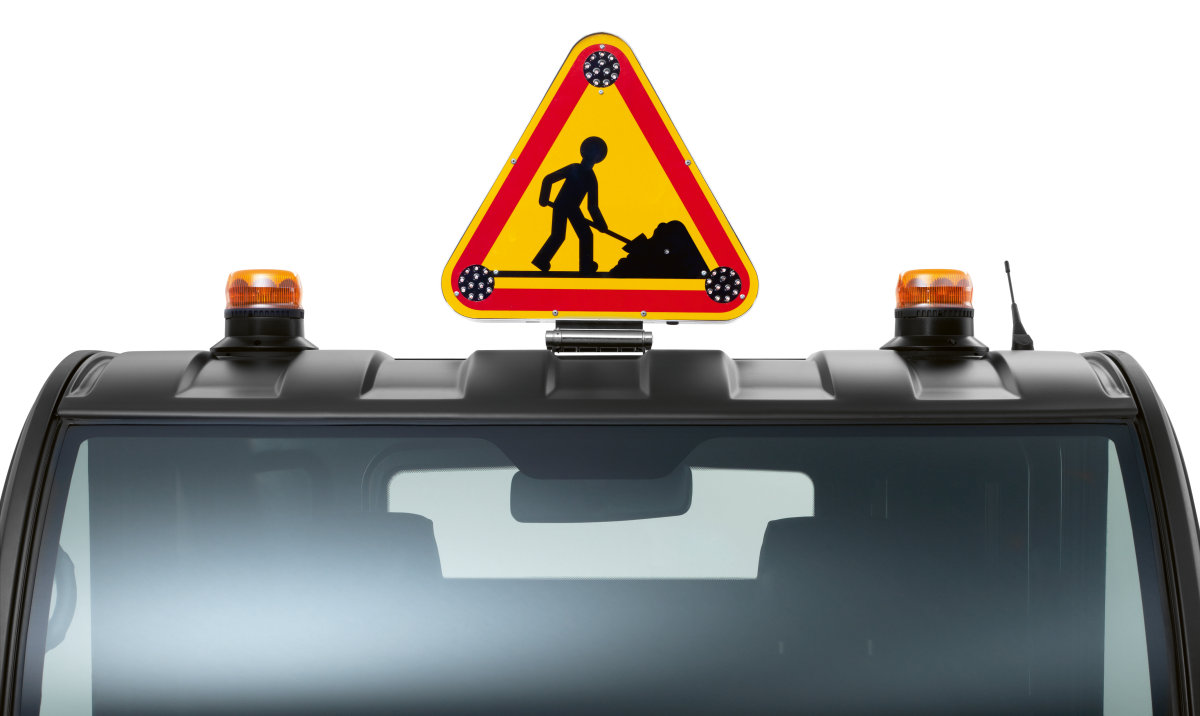

Warning triangle + 2 beacon lights

Comfort & finishing

Additional heating system
Electric windows

Stowage

Accessory - Trailer hitch

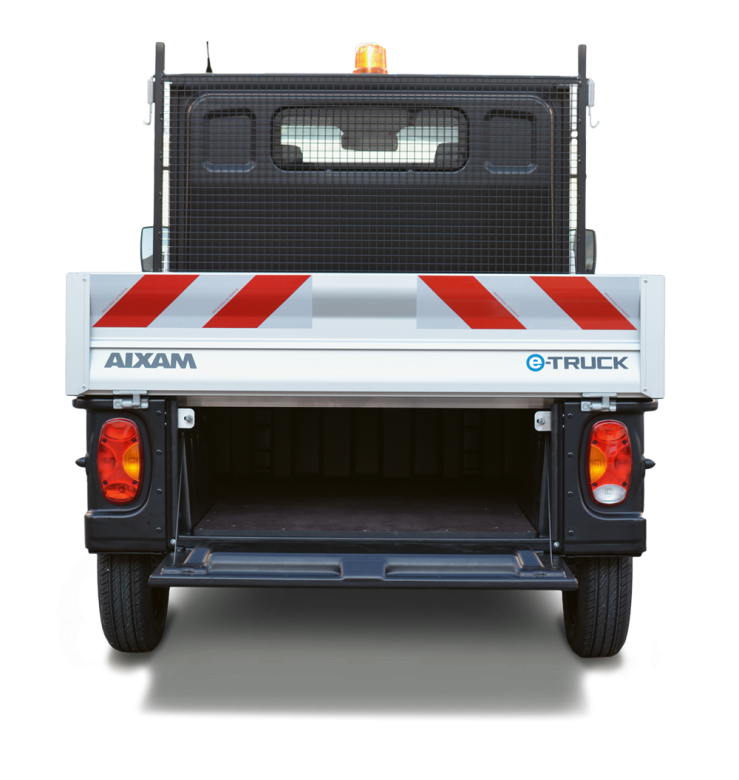

Cab grid
Drop-down meshed sides

Wheels

Spare wheel

Audio

MP3/RDS/USB radio without CD player

Price lists - e-TRUCK Drop side -

Drop side - "No-licence" car Electric

Base price
17 299 €
Leasing rate
179
€ 25 / Month + 1st payment of 4 325
These prices include :
- shipping,
- vehicle preparation,
- labour for the first 1,000 km service,
- the 2-year roadside assistance plan.
These prices do not include :
- vehicle registration fees and plates,
- a full tank of fuel (combustion engine only)and services.
Maximum total cost of fees :
190 € Incl. Tax, for vehicles not requiring a driving licence,
300 € Incl. Tax,for vehicles requiring a driving licence
(depending on vehicle registration fees in your department).

A credit is binding and must be repaid. Verify your repayment capacity before committing yourself. (Read more)

Available options

  • Accessory - Trailer hitch - 274 €
  • MP3/RDS/USB radio without CD player - 210 €
  • Reflecting tapes class 1 - 200,40 €
  • Rear protection bars - 182,40 €
  • Side protection bars - 298,80 €
  • Reverse bipper - 102 €
  • Additional heating system - 1 299 €
  • LED flash - 208,80 €
  • Cab grid - 459,60 €
  • Warning triangle + 2 beacon lights - 1 006,80 €
  • Drop-down meshed sides - 1 198,80 €
  • Spare wheel - 151,20 €
  • Reflecting tapes class 2 - 219,60 €
  • Electric windows - 144 €

Colour of the E-TRUCK Drop side

Blue
Grey
White
